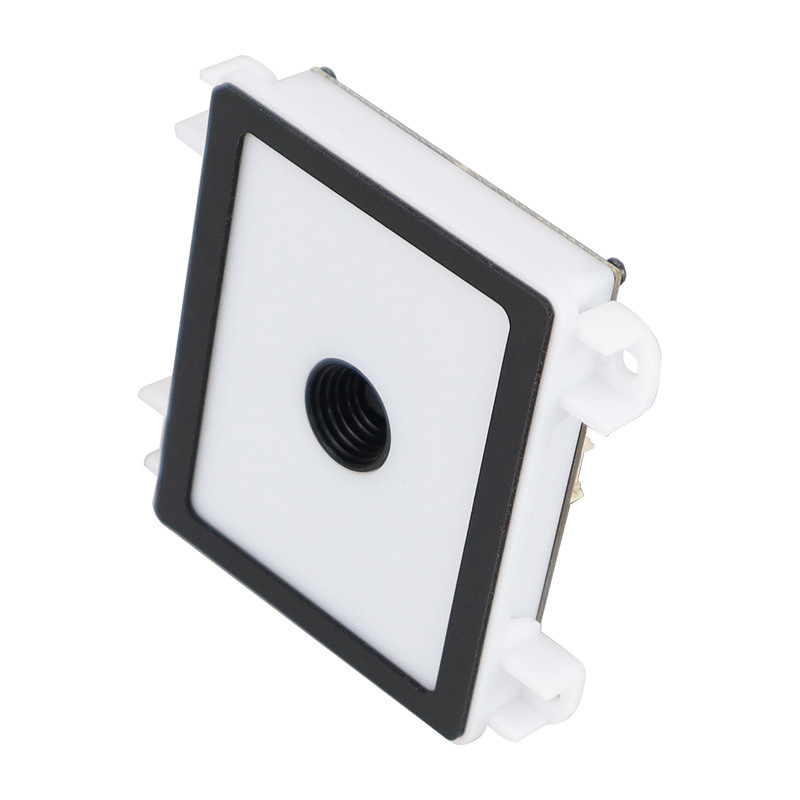

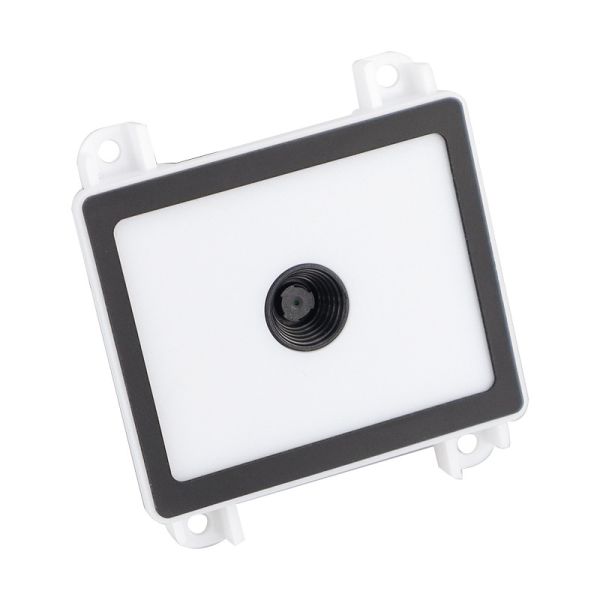

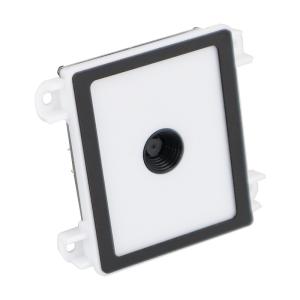

Embedded Mini Qr Code Reader Wall Reader Barcode Scanner USB 1d 2d Qr Code Reader Barcode Scanner Module
Scanning Technologies Used
Laser Scanners: Traditional, fast for 1D barcodes, cost-effective. Less common now due to imager dominance.
Linear Imagers: Use a 1D sensor array, good for 1D barcodes, more durable than lasers (no moving parts), can read
damaged/curved codes better.
2D Area Imagers (Most Common & Versatile): Use a camera sensor to capture both 1D and 2D barcodes (QR, Data
Matrix, Aztec). Can also capture signatures, images, OCR, and read codes from screens (PDF417, mobile tickets).
Superior for damaged, poorly printed, or omnidirectional codes.
Primary Applications
Self-Service Kiosks: Check-in, ticketing, payment, information.
Point-of-Sale (POS) Systems: Integrated into countertop terminals or cash registers.
Vending Machines: Product selection, age verification, mobile payments.
Medical Devices & Lab Equipment: Patient ID wristbands, sample tracking, reagent scanning.
Industrial Automation: Assembly line tracking, quality control, robot guidance.
Logistics & Sorting Systems: Parcel/package tracking, conveyor belt scanning.
Access Control Systems: ID badge verification.
Gaming Machines: Ticket-in/ticket-out (TITO), player tracking cards.
Mobile Computers & Rugged Tablets: Built into the body.
| Capability |
| Collection method | Image type, CMOS Sensor |
| Picking rate | 1 / 60 Seconds |
| Field of view Angle | Horizontal 62°, and 48.5° vertical |
| Ability to read |
| Identification accuracy | ≥5mil |
| Read the way | Close to, close to the reading |
| | | |
| Code 128 10mil 18bytes Paper copy code | |
| Code 128 18bytes Mobile phone code | |
| QR 10mil 160bytes Paper copy code | |
| DM 15mil 100bytes Paper copy code | |
| QR 18bytes Mobile phone code | |
| Code 128 10mil 18bytes Paper copy code | |
| Scan the Angle | The rotation angle was 360°, elevation angle ± 55°, and bias angle ± 55° |
| Support code system | In line with the international and domestic general QR code standards:
QR Code, PDF417, DataMatrix (ECC200), etc
In line with the international and domestic general one-dimensional code standards:
EAN 13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, CodaBar, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11,MSI Plessey, RSS-14, qualified RSS, extended RSS, etc |
| Print contrast | Minimum 25% of the reflection difference |
| LED |
| Fill-in light | White |
| Physical parameters |
| size
(Long, width and height) | 61mm ×51mm ×16.4mm |
| Weight | Less than 30g |
| Joggle |

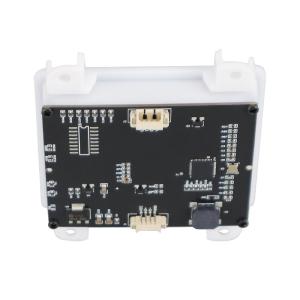

| Joggle | 4 PIN cable socket: USB KBW
4 PIN cable socket: Serial port TTL 232 or RS232 (5V or 3.3V) |
| Scan pattern | Command mode / induction mode / trigger mode |
| Read success tips | The LED and the buzzer |
| Data line (optional) | 4PIN straight line |
| Enviromental parameter |
| Working temperature | -20℃ ~ 60℃ |
| Storage temperature | -20℃ ~ 70℃ |
| Humidity | Relative humidity: 5% ~ 95% (no condensation) |
| Ambient light | Max.100,000 Lux |
| Electrical parameters |
| Input voltage | 5V or 3.3V |
| Working current | 125mA |
| Standby current | 85m A |
Customization options
Customized logo (Min. order: 100 pieces)
Customized packaging (Min. order: 100 pieces)
Graphic customization (Min. order: 100 pieces)
Shenzhen Yuanjie Information Technology Co., LTD. (YJFIRST) is one of the leading professional barcode scanner
manufacturers in China. YJFIRST specializes in barcode reading technology and has more than 10 years of experience in
the barcode scanning technology industry. YJFIRST's products include 1D and 2D barcode scanners, laser and CCD barcode
scanners, wireless barcode scanners, barcode scanner modules, scanning engines, omnidirectional scanning platforms,
and more. All products have passed CE, FCC, RoHS, IP54, RF certification, has been widely used in logistics, supermarket,
retail, medical, postal communication, office automation, manufacturing and other fields. We support OEM and ODM orders, welcome to visit our factory in China ! We will provide customers with high quality products
at competitive prices.
Q:Can you send sample? A:Yes, YJFIRST welcomes sample order to test. Please contact us for more details before placing sample order.
Q:Can we have our logo or company name to be printed on the product or package?
A:Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing,please contact us for more details.
Q:What's the shipping way?
A: There are DHL, Fedex, TNT, UPS. We also can ship the goods by your shipping account or other express agent you provided.
Q:What's the payment way?
A:We accept Alibaba online orders, PayPal ,T T, LC, Westem Union , MoneyGram.
Q:How about your product warranty?
A:Our oficiallyy promised warranty time is two years after delivery.
Q:How is your quality control?
A:Professional QC team and testing machine( Engine age testing, wire bending machine, switch life testing, shock resistance testing). CE, FCC & ROHS certificated.
Q:If I come across any problem during product using, where I can get the support?
A:We support you technically 24h/7. Please send all your questions to us, and we will give the professional, patient, expliantion by email or call in time.
