YJFIRST Embedded Small Size QR Code Scanner 2D Barcode Scanner
Module for Payment Kiosk Unmanned Supermarket

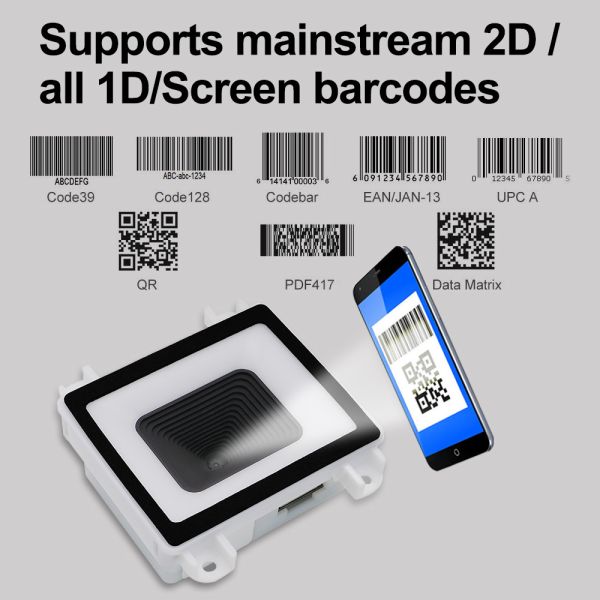

Features of embedded barcode scanners
Boasting powerful barcode scanning performance and high-precision
digital image acquisition capabilities, ES228 delivers
consistent and fast recognition of barcodes across all quality
ranges—from standard printed barcodes to high-resolution QR
codes on mobile device screens. Its industry-standard form factor
ensures broad compatibility with existing terminal device
designs, while its specialized light-resistant technology enables
reliable operation in harsh intense light environments, such
as outdoor kiosks, sunlit retail spaces, and transportation hubs,
making it a versatile solution for the IoT industry.
Application range of embedded barcode scanners
Widely embedded in terminal devices in the IoT ecosystem, such as
self-payment modules for unmanned vending machines,
self-service information inquiry terminals in public spaces,
intelligent logistics express cabinets with parcel tracking and
access
control functions, smart queue management systems in service
centers and hospitals, unattended ticketing machines at
transportation
hubs and events, and POS payment devices for various commercial
scenarios.
Technical Specifications of Embedded Barcode Scanner
Acquisition Performance |
Sensor | Image Type,CMOS Sensor, 640*480 Pixel |
Acquisition Speed | 1/120 fps |
FOV | Diagonal 84°,Level 72°,Vertical 54° |
LED |
Illumination | White LED |
Physical Parameter |
(L×W×H) | 61mm×58mm×25.2mm |
Weight | about 50g |
Interface |
| Double 5-pin socket, 2.0mm Pitch, common in the POS industry. |
12pin 0.5mm Pitch FPC socket, up and down compatible. |
| RS232, RS485,Wiegand, USB(VCOM, KBW,HIDPOS), TTL5 PIN: USB serial port or USB KBW (3.3V or 4-16V power) 5 PIN: UART/RS232/RS485/GPIO/Wiegand (3.3V or 4-16V power) 12 PIN: UART/USB(3.3V) |
Scanning Mode | Command Mode/Sense Mode/Auto Reading Mode |
Notification | Green LED, Beeper |
FAQ
Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us
for more details before placing a sample order.
Q: Can we have our logo or company name printed on the product or
package?
A: Yes, printing with the logo or company name is acceptable; it
will be accomplished by silk printing. Please contact us
for more details.
Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods
using your shipping account or other express agents you provide.
Q: What's the payment method?
A: We accept online orders, PayPal, T/T, LC, Western Union, and
MoneyGram.
Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.
Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age
testing, wire bending machine, switch life testing, shock
resistance testing). CE, FCC & ROHS certified.
Q: If I come across any problems during product use, where can I
get support?
A: We provide technical support 24/7. Please send all your
questions to us and we will give you professional and patient
explanations via email or call in time.
