| Brand Name : | YJFIRST |
| Model Number : | YJ-ES531 |
| Certification : | CE, ROHS, FCC, IEC, FDA |
| Price : | $81 |
| Payment Terms : | T/T ，D/P，D/A ，L/C ， MoneyGram ，Western Union |
| Supply Ability : | 20000pcs/month |
| Delivery Time : | 3-7 work days |

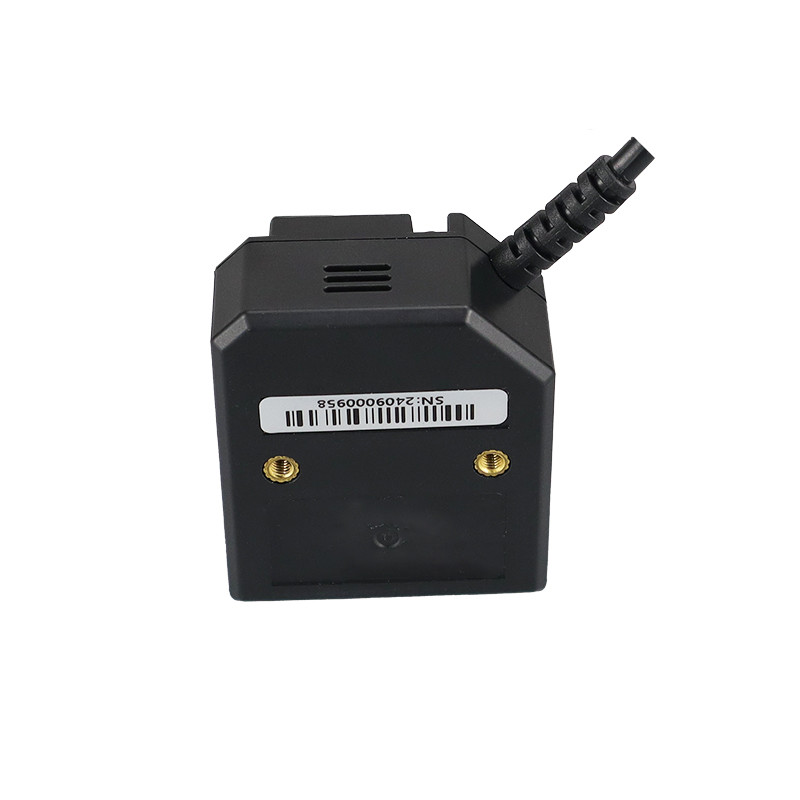

Passport Document Reader International Travel Passport Reader Passport Ocr Scanner
product features
Compact Form - factor: The scanner has a small, square - shaped body, which is highly space - efficient and
portable.
USB Connectivity: It is equipped with a standard USB cable, allowing for easy and quick connection to different
devices, such as computers and tablets.
Fast Scanning: Capable of rapidly reading barcodes, it significantly improves the speed of data - collection tasks.
High Accuracy: Offers precise barcode recognition, minimizing errors in data entry and collection.
Indicator Lights: Features indicator lights on the front, which provide visual feedback on the scanning status and
device operation.
| Sensor Capability | |||
| Image Sensor | 1280*800 CMOS | ||
| Acquisition speed | 60fps | ||
| Field of View | Diagonal 48.7°,Horizontal 42°,Vertical 27° | ||
| Scan Capability | |||
| Scan Precision | 2D≥4mil,1D≥3mil | ||
| Depth of Field | Testing Condition | ||
| Code 39 (4mil) | 60~160mm | ||
| Code 128 (5mil) | 40~230mm | ||
| Code 39 (5mil) | 45~200mm | ||
| Code 39 (20mil) | 70~420mm | ||
| 100% UPCA | 55~310mm | ||
| PDF417 (5mil) | 40~220mm | ||
| Data Matrix (10mil) | 35-210mm | ||
| QR Code (20mil) | 35~340mm | ||
| Scan Angle | Roll 360°,Pitch ± 55°,Skew ± 55° | ||
| Symbologies | 2D Code: QR Code,Data Matrix,PDF417,Hanxin Code,Dotcode etc | ||
| 1D Code: UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25, Standard 25, Codabar, MSI/MSI PLESSEY, GS1 DataBar etc | |||
| OCR-A,OCR-B(*Customized Version) | |||
| Minimal Print Contrast | 20% | ||
| LED | |||
| Illumination | White LED | ||
| Laser Aiming | |||
| Aiming | Laser diode 650nm | ||
| Mechanical | |||
| Dimension | (W×D×H):41.4mm×48mm×21mm | ||
| Weight | 35g | ||
| Interface | |||
| Interface | USB serial port/USB KBW/USB HID-POS/TTL-3.3V/TTL-5V/RS232/RS485 | ||
| Cable | 2 meter USB-A cable,2 meter DB9 cable with USB power supply | ||
| Scan Mode | Trigger mode /Command mode /Sense mode | ||
| Environmental | |||
| Operating Temperature | -30℃ ~ 70℃ | ||
| Storage Temperature | -40℃ ~ 80℃ | ||
| Humidity | 5% ~ 95%(non-condensing) | ||
| Ambient Light | Max.100,000 Lux | ||
| Electric | |||
| Input Voltage | 3-3.6V or 3.6-16V | ||
| Current@5VDC Operating | <220mA | ||
| Current@5VDC Standby | <15mA | ||
| Certifications | |||
| Certificates | IEC62471 | ||
| Warranty | 2 Years | ||
|
|
