Long Distance Qr Barcode Reader Module Qr Code Scanner Module USB 2d Barcode Scanner Qr Code Reader 1 D Barcode Scanner
Features:
1.Leading decoding technology: adopts self-developed core technology, extremely fast response, support rapid development
and customisation needs
2.Long-distance reading: 3*3cm payment code, 1.2M long-distance reading.
3.Full environment support: read mobile phone code and paper code under the hot sun and dark night environment.
4. Wide angle and wide range: 50cm scanning width measured in 80cm depth of the scene, for a friendly experience.
5. Diverse communication modes: can support RS485, RS232, USB, TTL level and other communication modes.
6. Industrial-grade wide temperature: selection of industrial-grade components, measured -40 ~ 80 ° C; -40 ° C and 80 ° C,
respectively, 7 x 24 hours aging for a week
Parameter
| Capability |
| Collection method | Image type, CMOS Sensor |
| Picking rate | 1 / 72 Seconds |
| Field of view Angle | Diagonal, 56°, 50° horizontal, and 30° vertical |
| Ability to read |
| Read the way | The barcode is in the direction of the reading prompt |
| Scan depth of field
| Test condition | Depth of field |
| WeChat, Alipay payment bar code | 10 - 100 cm |
| Scan the Angle | Turning angle 360°, Elevation angle ± 55°, Declination angle ± 55°. |
| Support code system | QR Code, Code128, etc., for the payment barcode |
| LED |
| Fill-in light | White |
| Physical parameters |

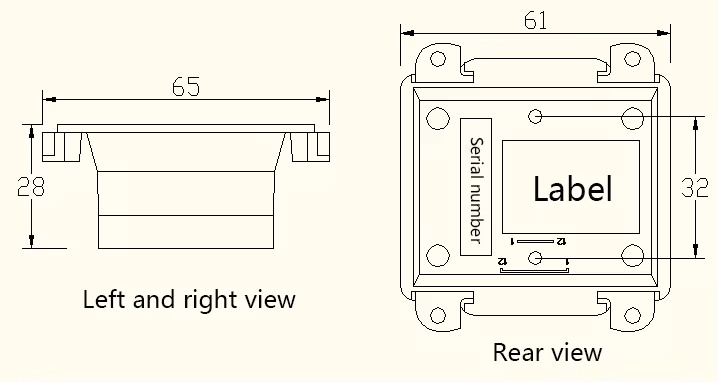

| Size (mm) | 656128 (length, width and height) |
| Weight | <30g |
| Joggle |
|
Socket interface
| 12PIN Cable Receptacle, 1.25mm Pitch
12PIN 0.5mm Pitch FPC socket, top and bottom compatible with 3-3.6V or 3.6-16V power supply
USB/RS232/3V TTL/5V TTL/RS485 |
| Scan pattern | Command mode / induction mode / trigger mode |
| LED, light prompt | Blue: standby status; red: waiting for read status; green: successful read status |
| The buzzer tip | Yes |
| Data line (optional) | USB 2 M straight line, RS232 2 m straight line |
| External scalable interface | Buzzer, decoding successful prompt lamp, trigger signal |
| Enviromental parameter |
| Working temperature | -20℃ ~ 55℃ |
| Storage temperature | -40℃ ~ 80℃ |
| Humidity | Relative humidity: 5% ~ 95% (no condensation) |
| Ambient light | Max.100,000 Lux |
| Electrical parameters |
| Input voltage | 3-3.6V, or 3.6-16V |
| Working current
(With LED full line) | Less than 300mA (3.3V input), less than 220mA (5V input) |
| Working current
(With LED, face light source) | Less than 200mA (3.3V input), less than 150mA (5V input) |
| The dormant current | < 5mA |
| Install |
| Lashing eye | Four direct 3.3-mm fixation holes |
| Tapping hole | Two M3 * 5mm copper nuts |
FAQ
1.Q:Can you send sample? A:Yes, YJFIRST welcomes sample order to test. Please contact us for more details before placing sample order.
2.Q:Can we have our logo or company name to be printed on the product or package?
A:Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing,please contact us for more details.
3..Q:What's the shipping way?
A: There are DHL, Fedex, TNT, UPS. We also can ship the goods by your shipping account or other express agent you provided.
4.Q:Can you offer OEM/ODM service for our order?
A: We can support different aspects customization service including hardware/mechanical design.But there is a MOQ request.
5.Q:How many kinds of languages your printers support?
A: So far our printers support at least 54 kinds of different languages for worldwide market.Such as English/Spanish/
Japanese/Korea/Arabic/Hebrew/Persian and so on.
6.Q:Can i use your printer in android OS with USB?
A: Our printers can flexibly run on windows/linux/android OS,no matter you used serial or USB interface for your
application.And we will offer ESC/POS commands manual,USB driver and SDK for your technical reference.
