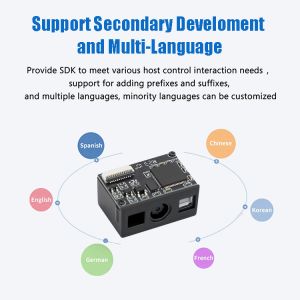

YJFIRST 2D Embedded Mini Bar Qr Code Reader Scanning Engine Fixed
Mount Barcode Scanner Module
Why Choose Us?
---- Private mold, OEM/ ODM/ Customized all available for you.
----Own patents for the products.
----CE RoHS FCC EMC EMF BQB FDA CB certification.
----We promise 12 hours fast reply and 3 days shipment.
----1 year warranty.
Advantages of reading head of scanning code engine
1.Advantage: Modern scan engines decode 1D/2D barcodes in milliseconds. This
speed is critical during high-volume
operations like order processing, inventory intake, and, most
importantly, at the point of sale.
2.Advantage: Advanced scan engines offer a first-pass read rate of over 99.9%,
even with damaged, poorly printed, or
distorted barcodes on screens (like mobile tickets and coupons).
3.Advantage: A high-quality omnidirectional scan engine can read every major
barcode symbology—from standard UPC
codes to QR codes, Data Matrix, and beyond—from any angle without
precise alignment.
4.Advantage: Industrial-grade scan engines are built to withstand thousands of
scans per day and survive accidental drops.
Ergonomic designs reduce user fatigue.
5.Advantage: Modern scan engines plug seamlessly into Inventory Management
Systems (IMS), Warehouse Management
Systems (WMS), and e-commerce platforms like Shopify or Magento via
USB, Bluetooth.
parameter
Scan performance |
sensor | 640×480 CMOS |
lighting | white light LED |
focusing | glow LED |
Read code system | 2D:QR Code, Data Matrix ,PDF417 |
1D:Code 128,Ean-13 ,Ean-8,UPC-E,UPC-A,ITF-25(Interleaved 2 0f 5),
Code39,Code93,Codabar |
Read accuracy | ≥5mil |
contrast ratio | ≥20% |
Scan the Angle | The rotation angle was 360°, elevation angle ± 55°, and bias angle
± 55° |
angle of field | Horizontal is 36°, and 27° vertical |
Mechanical / electrical parameters |
communication interface | TTL-232, USB (HID-KBW, virtual serial port) |
Appearance size | 20.98*14.82*11.11mm |
Operating voltage (current / power consumption) | DC 5.0V/150mA/750mW |
Standby current | 70mA |
FAQ
Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us
for more details before placing a sample order.
Q: Can we have our logo or company name printed on the product or
package?
A: Yes, printing with the logo or company name is acceptable; it
will be accomplished by silk printing. Please contact us
for more details.
Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods
using your shipping account or other express agents
you provide.
Q: What's the payment method?
A: We accept online orders, PayPal, T/T, LC, Western Union, and
MoneyGram.
Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.
Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age
testing, wire bending machine, switch life testing,
shock resistance testing). CE, FCC & ROHS certified.
Q: If I come across any problems during product use, where can I
get support?
A: We provide technical support 24/7. Please send all your
questions to us and we will give you professional and patient
explanations via email or call in time.
