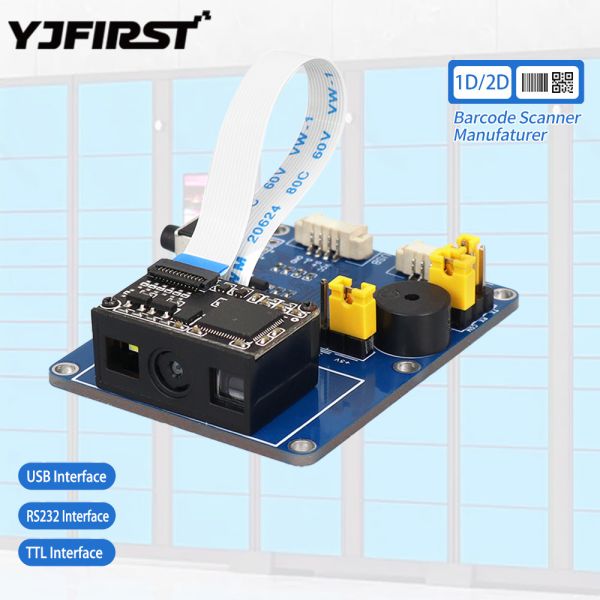

YJ-ES103 OEM Mini Scan Engine 2D Module USB Interface RS232 TTL for Kiosk Vending PDA Terminal
Product Highlights: Embedded Code-Scanning Engine Head
1. Lightning-Fast & Accurate
"Decode in a Blink. 99.9% Accuracy."
Achieve millisecond-level code recognition with industry-leading precision, ensuring zero delays in your workflow.
2. AI-Powered Intelligence
"See and Decode Like a Human, But Faster."
Our advanced AI algorithm effortlessly reads damaged, blurred, or poorly lit codes that conventional scanners miss.
3. Unmatched Versatility
"One Engine, Every Code."
Master the entire spectrum—from standard QR and barcodes to complex Data Matrix codes—across all your applications.
4. Plug-and-Play Integration
"Integrate in Hours, Not Weeks."
Get to market faster with our SDK and APIs designed for seamless integration into Android, Linux, and Windows IoT systems.
5. Built for the Real World
"Rugged. Reliable. Ready."
With an IP67 rating and a wide operating temperature range, it performs flawlessly in demanding environments like warehouses and factories.
Application Scenarios for the Scanning Engine Head
Retail & Logistics: Enable instant product lookup, inventory management, and parcel tracking in warehouses or smart stores.
Manufacturing: Integrate with assembly line robots for part identification and quality control automation.
Healthcare: Streamline medical device tracking and patient record access in hospitals.
Smart Offices: Accelerate document digitization and asset management workflows.
Technical parameters of scan code engine head
|
Scan performance
|
|
sensor
|
640×480 CMOS
|
|
lighting
|
white light LED
|
|
focusing
|
glow LED
|
|
Read code system
|
2D:QR Code, Data Matrix ,PDF417
|
|
1D:Code 128,Ean-13 ,Ean-8,UPC-E,UPC-A,ITF-25(Interleaved 2 0f 5),
Code39,Code93,Codabar
|
|
Read accuracy
|
≥5mil
|
|
contrast ratio
|
≥20%
|
|
Scan the Angle
|
The rotation angle was 360°, elevation angle ± 55°, and bias angle ± 55°
|
|
angle of field
|
Horizontal is 36°, and 27° vertical
|
|
Mechanical / electrical parameters
|
|
communication interface
|
TTL-232, USB (HID-KBW, virtual serial port)
|
|
Appearance size
|
20.98*14.82*11.11mm
|
|
Operating voltage (current / power consumption)
|
DC 5.0V/150mA/750mW
|
|
Standby current
|
70mA
|
|
enviromental parameter
|
|
working temperature
|
-20℃~+60℃
|
|
storage temperature
|
-40℃~+80℃
|
|
Working humidity
|
5%~95% (no condensation)
|
|
Environmental light
|
0~100,000LUX
|
|
List of accessories
|
|
development board
|
Development board with trigger button and buzzer, with RS-232 and USB output
|
|
data wire
|
USB / RS232 data cable, used to connect the development board and the information receiving host
|
|
Power adapter
|
5V power adapter with RS-232 cable to power the development board
|
FAQ
Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.
Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us for
more details.
Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents
you provide.
Q: What's the payment method?
A: We accept online orders, PayPal, T/T, LC, Western Union, and MoneyGram.
Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.
Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing, shock
resistance testing). CE, FCC & ROHS certified.
Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient explanations
via email or call in time.
